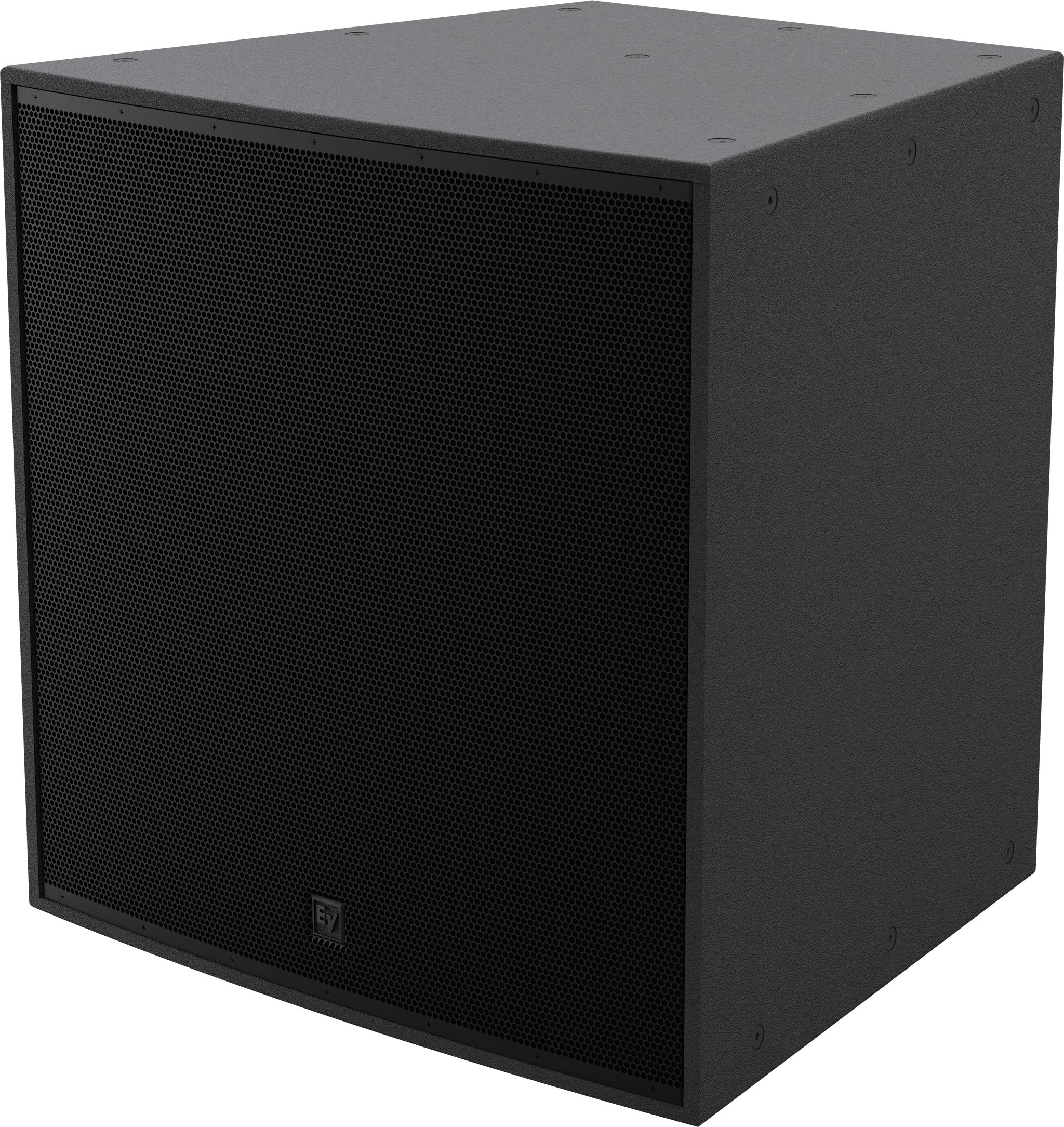

EVH G2 Horn Load 15"
EVH G2 Horn Load 15"
The 90° x 90° EVH G2 — the widest-pattern 15-inch, two-way point-source in the line.
Features
Blanket a near-field crowd with one cabinet. EVH-15/99 G2 fires the widest pattern in the range, a full 90° x 90°, so close, wide spaces — worship rooms, clubs, multipurpose halls — get even coverage without a second box. EV's newest HF horn, new in-house transducers, and low-loss crossovers carry it; flat-phase FIR presets hold system latency under 10 ms. Rated IP55 with the moisture cover and a 5° downtilt for indoor or outdoor use.
- Widest pattern in the line — a full 90° x 90° spread for close, wide rooms.
- Stays tight on time — flat-phase FIR presets keep system latency under 10 ms.
- Built in-house — all-new EV transducers, low-loss crossovers, and EV's best HF horn yet.
- Takes the weather — IP55 per IEC 60529 with the moisture cover fitted and a minimum 5° downtilt.
- Hangs your way — U-brackets, eyebolts, and rigging kits, plus four rear Omni-mount points.
Specifications
Acoustic Performance
- Frequency Response
1k
- Frequency Range (-10 dB)
55 Hz - 20 kHz
- Coverage angle (V)
30
- Coverage Angle
90 × 90
Power & Amplification
- Power handling (continuous) (W)
400
Impedance
- Nominal Impedance
8Ω
