ELX200 10P

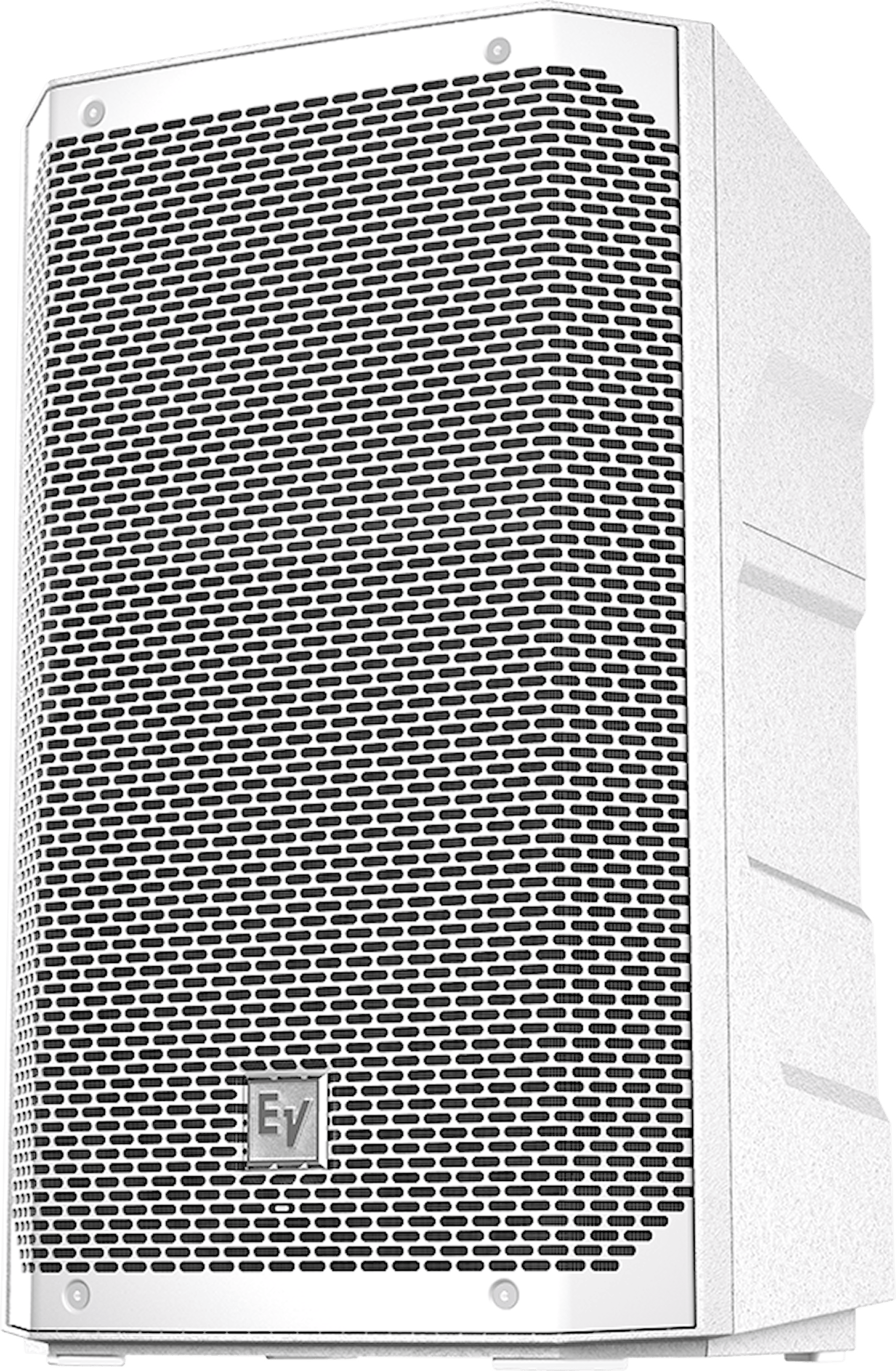

ELX200-10P 10" 2-Way Powered Speaker
A powered 10-inch two-way with QuickSmartDSP and wireless control on your phone.
Variants
Features
Plug in, pick a preset, and you are dialed. The ELX200-10P drives an EV-engineered 10-inch EVS-10M woofer and a DH-1L 1-inch titanium compression driver with up to 1,200 W of Class-D power for up to 130 dB SPL. QuickSmartDSP brings four presets, system-match crossovers, three-band EQ, and limiting to the rear panel, and the QuickSmart Mobile app controls up to six boxes over Bluetooth. Mobile DJ, band, house of worship — control your sound from out front.
- Strong, clean output — up to 130 dB SPL from a 1,200 W Class-D amplifier.
- Control from the crowd — QuickSmart Mobile manages up to six speakers over Bluetooth.
- Tune it on board — four presets, three-band EQ, system-match crossovers, and limiting.
- EV-engineered sound — EVS-10M 10-inch woofer with a DH-1L 1-inch titanium driver.
- Easy to carry and rig — light polypropylene cabinet with the proven ZLX handle design.
Specifications
Acoustic Performance
- Max SPL
130
- Frequency Response
59 Hz -18 kHz
- Frequency Range (-10 dB)
53 Hz - 20 kHz
- Coverage Angle
90 × 60
Transducers & Drivers
- LF transducer size (in)
10
- Element Type
DH-1L 1-inch titanium compression driver
